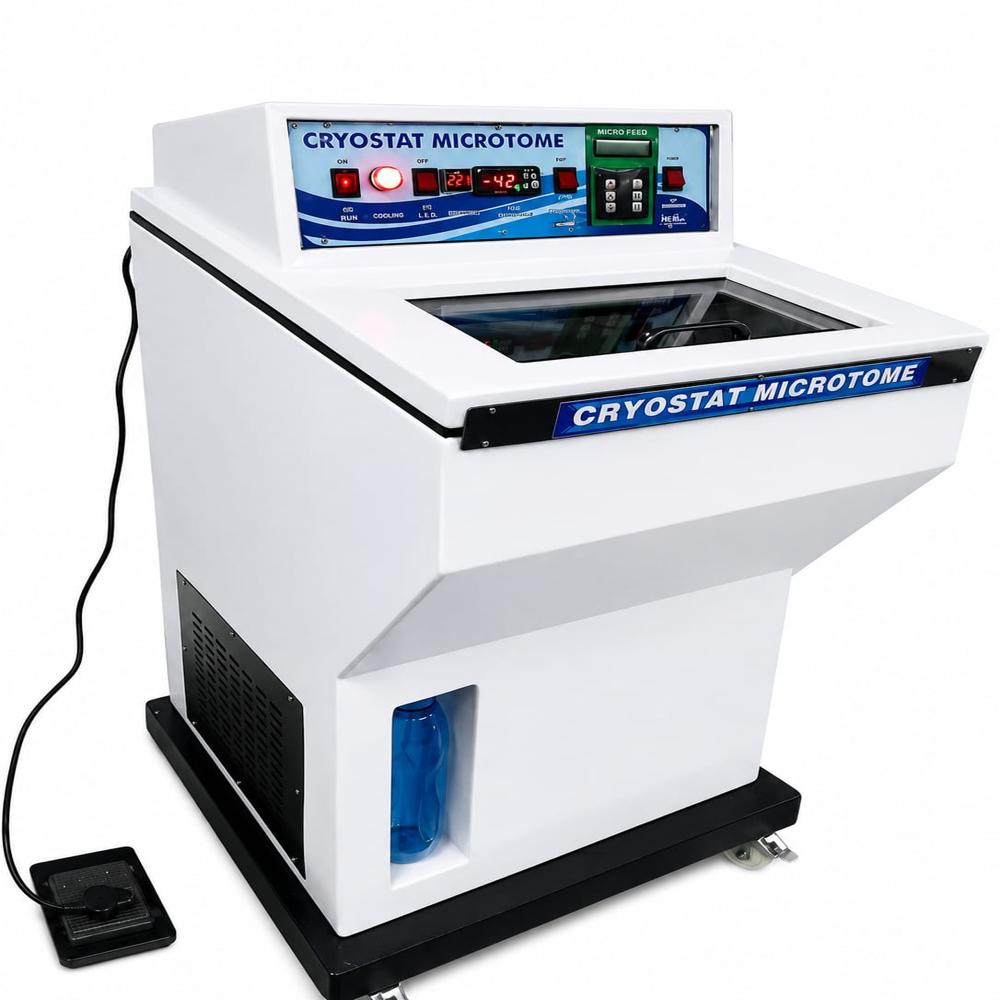

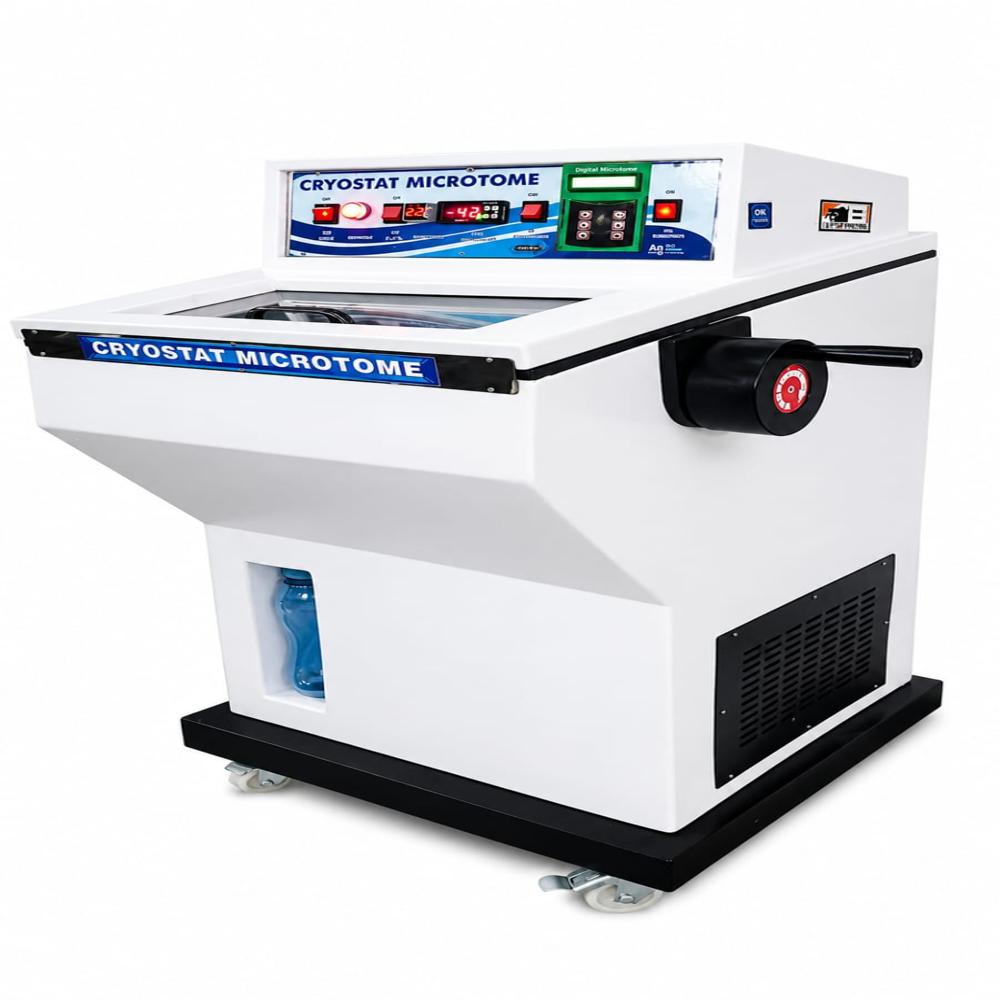

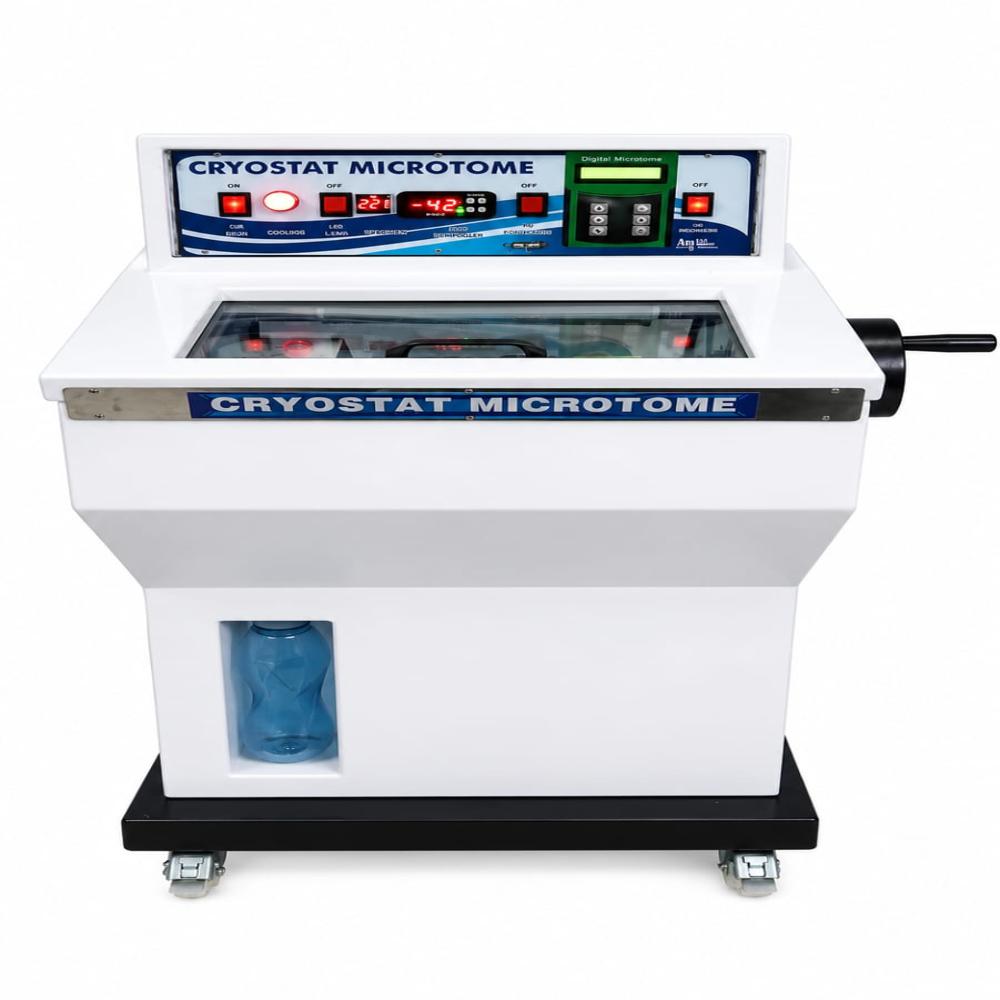

Automatic Cryostat Microtome

Name: Automatic Cryostat Microtome
Brand: VIBRO INTERNATIONAL
Price: 298000.00 INR
Availability: InStock

298000.00 INR/Piece

Get a Price/Quote

Product Details:

Application Histopathology, Pathology Laboratories, Research Laboratories and Frozen Section Analysis
Core Components Cryogenic Chamber, Microtome Assembly, Specimen Holder, Knife/Blade Holder, Temperature Control System, Digital Controller
Power Source electric
Measurement Range Section Thickness: Approx. 1 60 m
Automation Grade semi automatic
Power 1000-1500 W Watt (w)
Usage Frozen Section Preparation and Tissue Examination
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Automatic Cryostat Microtome Price And Quantity

Minimum Order Quantity 1 Piece
Price 298000.00 INR/Piece

Automatic Cryostat Microtome Product Specifications

Operate Method semi automatic /fully automatic
Feature Rapid Cooling, Precise Sectioning, Digital Temperature Control, Insulated Chamber, Adjustable Section Thickness
Automation Grade semi automatic
Power 1000-1500 W Watt (w)
Display Type digital display
Usage Frozen Section Preparation and Tissue Examination
Color white and black
Application Histopathology, Pathology Laboratories, Research Laboratories and Frozen Section Analysis
Type cryostat microtome
Measurement Range Section Thickness: Approx. 1 60 m
Power Source electric
Core Components Cryogenic Chamber, Microtome Assembly, Specimen Holder, Knife/Blade Holder, Temperature Control System, Digital Controller
Product Type cryostat microtome
Warranty 1 Year Against Manufacturing Defects
Equipment Materials brass alluminum stainless steel
Model No As Per Model / Manufacturer Specification
Material powder coated material
Voltage 220-240 V Volt (v)
Accuracy 1 C Temperature Control / As Per Instrument Configuration %
Capacity Adjustable Sectioning Capacity Pcs/hr
Classification Laboratory / Histopathology Equipment
Weight 125 Kilograms (kg)
Frequency 50 Hertz (HZ)
Temperature Range Approx. -10 C to -40 C Celsius (oC)
Dimension (L*W*H) Approx. 900 800 1200 mm Millimeter (mm)

Automatic Cryostat Microtome Trade Information

FOB Port Ambala Cantt
Payment Terms Cheque, Cash in Advance (CID)
Supply Ability 10 Piece Per Week
Delivery Time 7 Days
Sample Policy Contact us for information regarding our sample policy
Main Export Market(s) Middle East, Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe
Main Domestic Market All India

Product Description

Cryostat Microtome Machine is ergonomically designed keeping in view user needs and safety. It incorporates an optimized cooling system with compressor for rapid specimen freezing and smooth precise orientation that gives high quality sectioning in histology, with section thickness range of 1-60m, trimming thickness range 30m-95m, with freeze chamber temperature range of -1C to 40C, pro-environment refrigerant, a rapid refrigeration mode, LED Screen which can display data such as sample travel, section thickness and temperature. Easy to operate control panel with controls for temperature and time. Equipped with a closed drainage system that ensures collection of condensed fluids in a container.

FEATURES :

Easy to use

An Insulated compartment where the sample is palced & maintained at low temperature (-40C) maximum.

Rapid freezing of sample ensure preservation.

Digital LCD screen for setting up sectioning parameters.

Specimen retraction function protects the specimen form blade injury

Technical Specifications

Sectioning thickness range: 1um-30um, in 1um increments

Trimming thickness range: 30um-95um, in spm increments

Freeze shelf lowest temp: -40oC

Cooling down time to -30oC: 60mins

Maximum specimen size: 35mm x 35mm

Specimen vertical stroke: 70mm specimen

Horizontal stroke: 20mm

Precision and Versatility for Histology

Designed for medical laboratories, the cryostat microtome allows users to precisely control section thickness from 1 to 99 m. The universal knife holder accommodates both steel and disposable blades, making it adaptable to diverse sample preparation requirements. Motorized horizontal feed and 360 sample orientation ensure uniform, accurate results every time.

FAQs of Cryostat Microtome:

Q: How does the programmable defrost function benefit laboratory workflow?

A: The programmable automatic defrost feature minimizes instrument downtime by allowing scheduled defrost cycles. This helps maintain optimal temperature conditions, reduces frost build-up, and ensures the microtome is readily available for continuous use in busy laboratory settings.

Q: What safety features are integrated into this cryostat microtome?

A: Safety is prioritized with an emergency stop button, lid interlock system, and a finger guard to prevent accidental contact with the cutting blade. These features collectively help protect users during operation and maintenance.

Q: When should I use the rapid specimen freezing function?

A: The rapid freezing function is designed for situations where fast sample preparation is required. By quickly reaching temperatures as low as -35C, it preserves tissue integrity and cellular structure, which is critical for accurate histological and pathological analysis.

Q: Where can this cryostat microtome be effectively used?

A: This microtome is suitable for medical laboratories, research institutions, and pathology departments in hospitals, especially where high-precision frozen sectioning is needed for histological examination and research.
